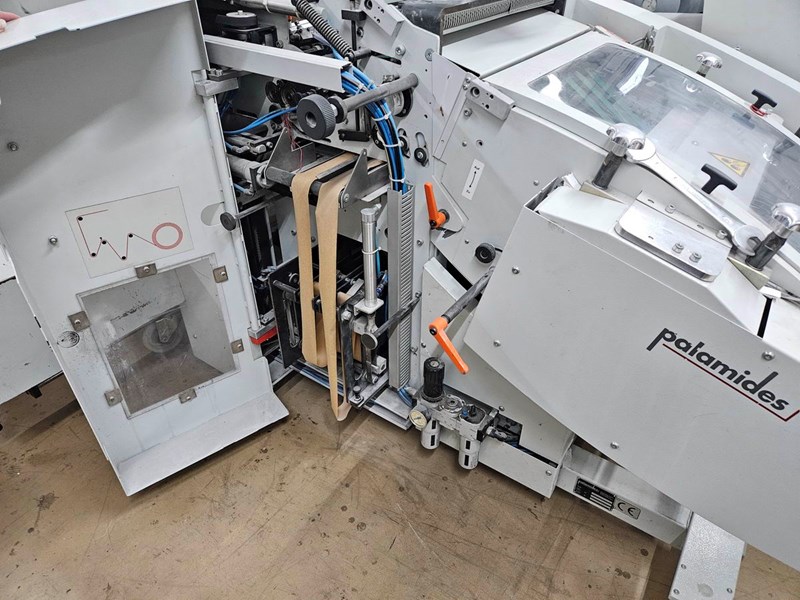

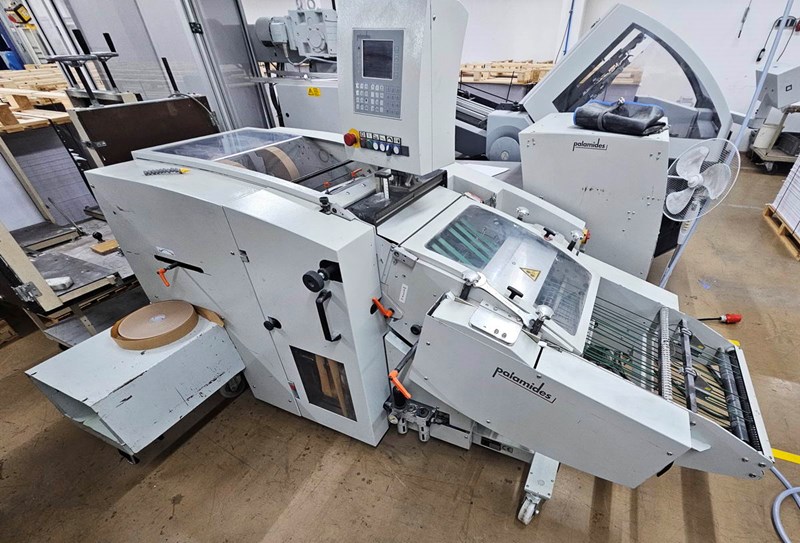

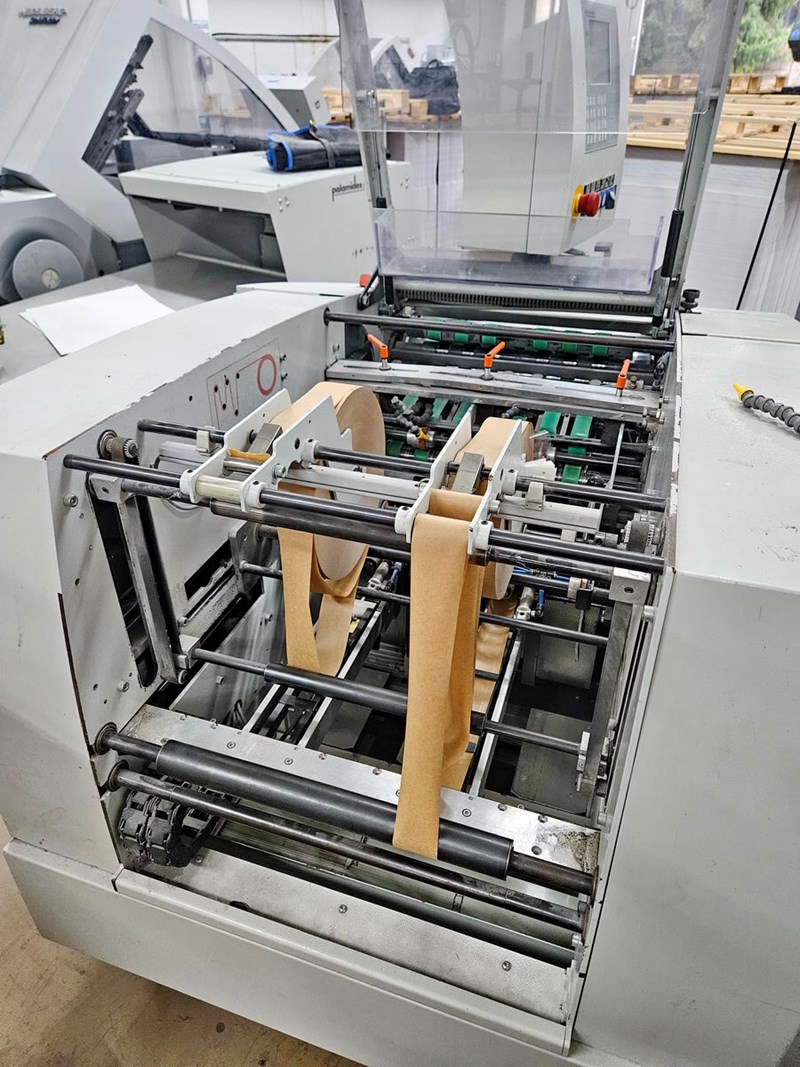

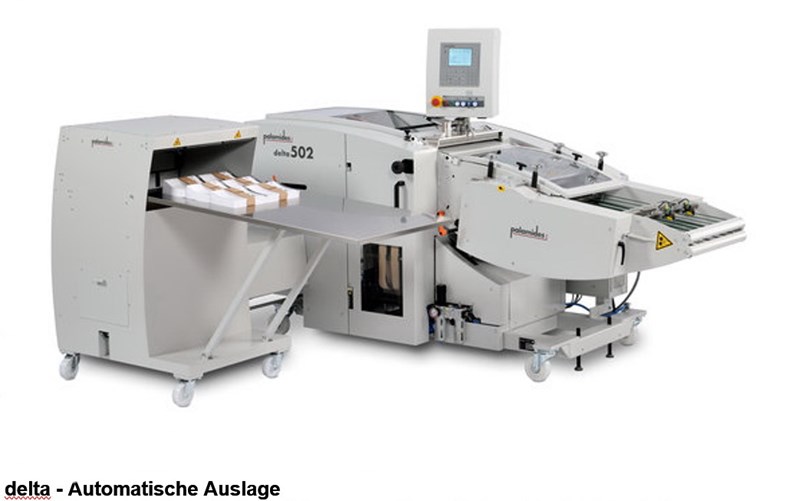

Automatic Bundle Stacker
– working width: 510 mm
– up to 2 bundling stacks
– swivelling control panel
– quick set-up mode without tools
– press-station with pre- and main-pressure-roller and packet-pressing up to 3,5 t
– collecting, counting, and vibrating in the chute to create clean stacks
– bundling of piles in the magazine shaft with paper and plastic materials
– solid and reliable Electronic Impulse Welding process (EIW)

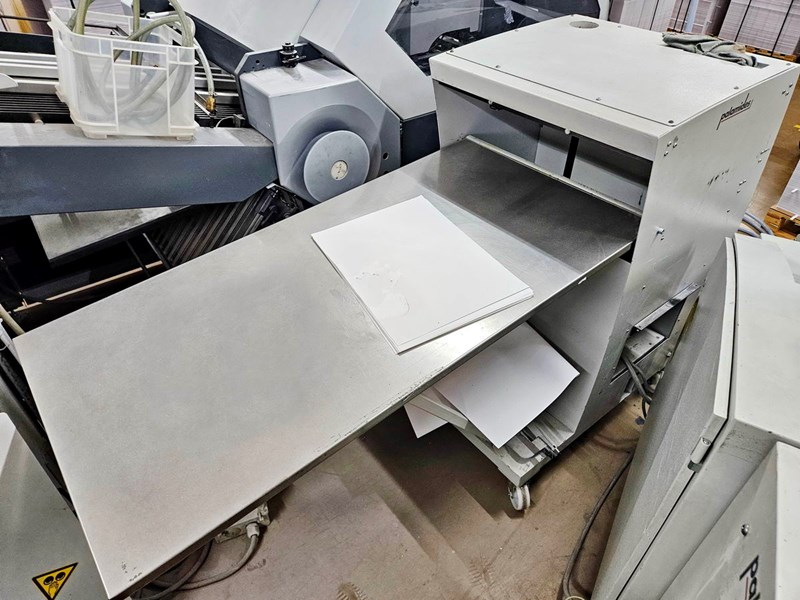

– packet-lift-delivery (one-man-operation of folder with Palamides)
– the delta-502 is mobile for quick changes on different machines
Technical Data:
– packet height min.: 20 mm
– packet height max.: 150 mm
– performance: 600 packets/h per repeat
– speed: 15 – 200 m/min
– infeed height: 400 – 1050 mm
– electric power: 6 kW
– pressure air: 6 bar dry air, to be provided by user
Formats: (infeed-width x infeed-length)
– min. 110 x 95 mm
– max. 1 repeat: 510 x 300 mm
– max. 2 repeats: 235 x 300 mm
