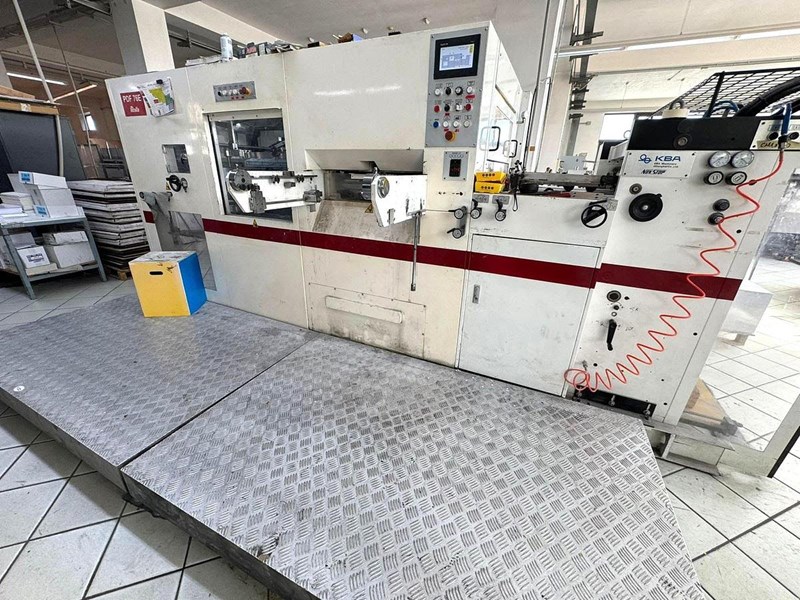

AUTOMATIC DIE CUTTER WITH SCRAP CLEANING for standard cutting, creasing, perforating, and semi-cutting operations.
Maximum sheet size: 760 x 600 mm.
Minimum sheet size: 310 x 310 mm.
Maximum die-cutting dimensions: 750 x 580 mm.
Internal frame: 820 x 607 mm.
Paper thickness: 80 g/m² up to E-corrugated board.
Maximum pressure: 200 t.
Minimum clamp margin: 8 mm.
Maximum die-cutting: 7,000 sheets/hour.
Maximum stack height at feeder: 1,300 mm.
Maximum stack height at output: 1,090 mm.
Total power: 15 kW.
Machine dimensions: L4.45 x W1.9 x H2 m.
Machine weight: 13.5 t.
Available immediately and visible in production.
